BreathLogix (Br-LGX) – Industrial Series (IS)

• Australian Standard AS3547:2019 Certified
• Pre-calibrated replaceable cartridge - $795.00 + GST
• 12 monthly calibration
• Made in Canada
• Steel build with straw dispenser
• Internet connectivity for live reporting
• In-built camera
• Both Passive (talk into) and Active (blow into) testing
• Range: 0.000 to 0.300 g/210L breath
• 7" Touch screen
• Size - 25cm x 43cm x 17cm, 9.5 kg
• Power - 12 volt DC power adaptor
• Both Active (mouthpiece) and Passive (contactless) testing
• Biometric ID scanner option
• Printer option

• Alcohol Sensor: Alcohol Specific Fuel Cell with high sensitivity and wide detection range
• Detection Range: 0 to 0.3 g/210 L BrAC
• Accuracy: ± .005 g/210 L for 0 to 0.05 g/210 L BrAC. ± 10% for 0.05 to 0.3 g/210 L BrAC
• Recovery Time: 10 Seconds for negatives, under 30 seconds on positives.
• Units of Measure: BrAC standard for Australia. Available in other common units of measure.
• Sample Pump: Automatically actuated electronic pump.
• Operating Temperature: 32° - 113° F (0° - 45° C)
• RFID
• Speaker for voice commands
• Camera

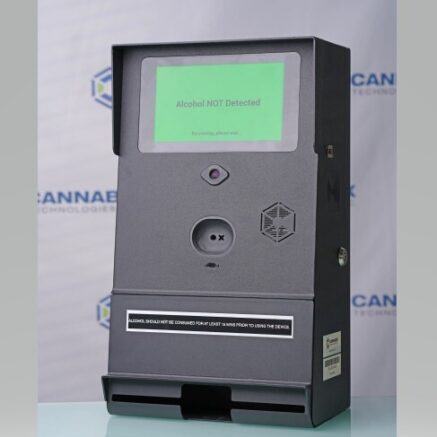

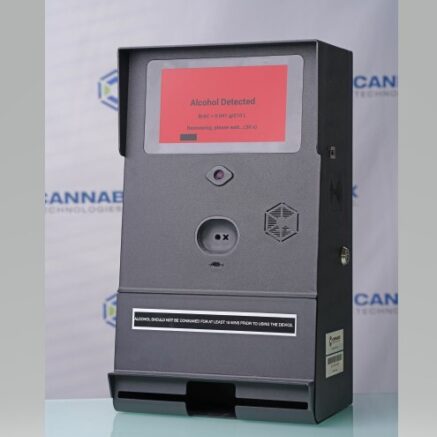

• Alcohol detected not detected
• Email and text notification
• Wi-Fi, Bluetooth, Ethernet, USB and RS 232 connectivity
• Remote management dashboard with Amazon AWS
• Calibration due displayed warnings
• Internal data storage as well as uploading to the cloud
• Dust and water resistant
• Daily/weekly/monthly logs backup
• Straw dispenser built in, easy refill
• 12 month warranty

• Capability of testing in two modes: Contactless and Mouthpiece.
• Accurate results available within 10 seconds of sample collection.
• Reporting BAC (blood alcohol content) in the range of 0.000 to 0.300 g/210 L breath.
• The device comes with a pre-calibrated replaceable cartridge which contains the alcohol fuel cell sensor.
• Cannabix can send users new pre-calibrated cartridges before the calibration is due or upon the user’s request.
• Quick cartridge replacement within less than a minute without the need to recalibrate.
• The device provides an accurate test result, or alternatively, explains why it cannot do so, along with helpful suggestions to ensure a precise test for the user.
• The device can send the results to the administrator via text messages and/or emails.
• A proximity sensor is utilized to set the distance of the users while doing the tests in contactless mode.
• A web portal for the administrator to access the test results with interactive dashboards.•
• Internet connectivity via Wi-Fi or Ethernet that takes less than a minute to setup.•
• The device needs the internet to upload the test information to the cloud for secure data storage and management. This can be done through Wi-Fi networks or Ethernet.
• 5" capacitive touchscreen, that makes the device easy to work with.
• The device comes with a camera for taking users’ pictures.
• The device comes with voice commands for ease of use.
• Multiple sensors are included in the device to detect alcohol in the presence of any possible interfering substances such as acetone, CO, methanol, methane, etc.
• More than 20 GB of data storage on the device, which is enough for more than 30,000 tests, along with an unlimited cloud storage capacity.
• A real-time clock that automatically updates based on the device's location when connected to the internet.
• The contactless test mode provides a positive/negative test result with zero tolerance for the presence of alcohol. Contactless test can be followed by a straw test to confirm the exact amount of alcohol levels in the user breath in case of positive sample.
• The device includes internal controlled heaters to provide accurate results at any operating temperature in the range of 0-45 ℃.
• An accurate pressure sensor is utilized to make sure at least 1 L of breath is collected through the straw mode test.
• A safety thermal fuse is used to prevent overheating under any circumstances. This is included as a safety feature.

12 monthly: Due to the highly technical nature of this device, on-going calibration/service of this product is required to maintain accuracy to AS3547 standards.
